PLATFORM OPTIONS
Laminators
Platforms to meet your specific laminating needs
We have the perfect surface option to work for you, whether you need it for painting, laminating or thermofusing.
ArmorCore Platform Characteristics

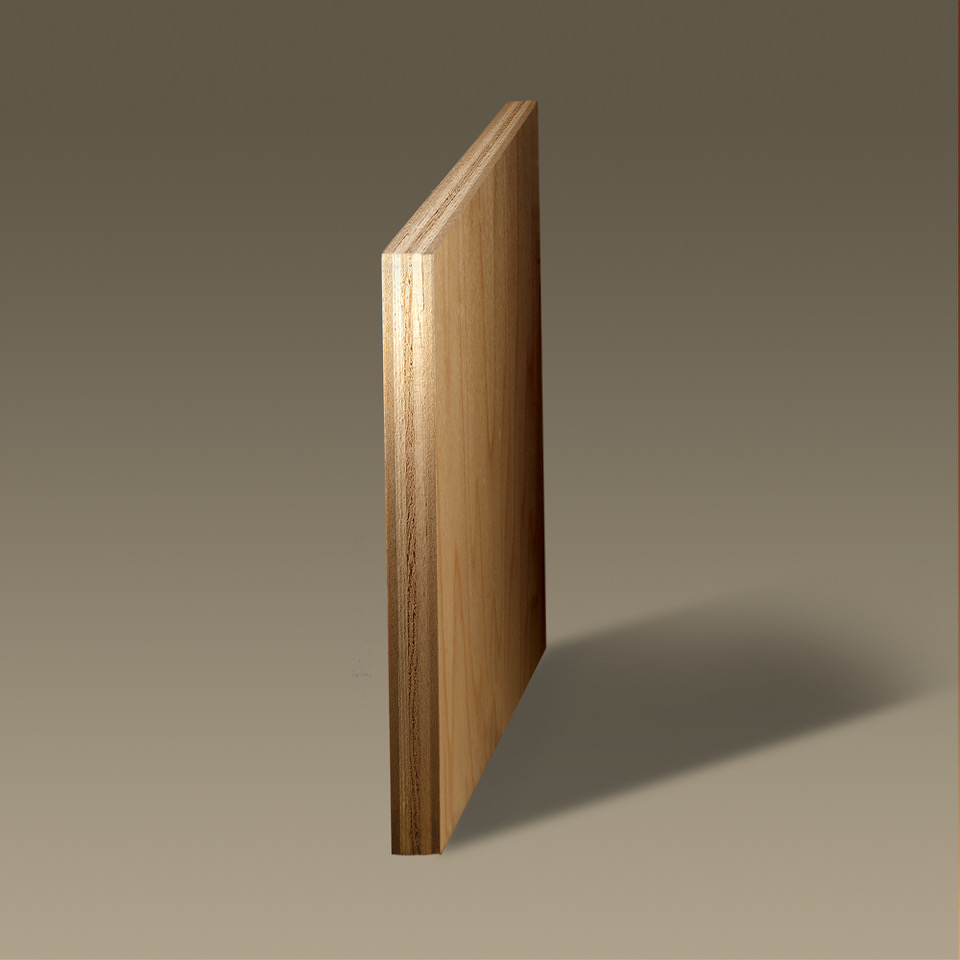

ArmorCore®
- Smooth surface
- Ideal for painting
- Panels are NAUF (no-added urea formaldehyde)
- Laminated paper platform
- 3/64″ nominal thickness tolerance
- Available in thicknesses from 1/2″ to 1-1/4″
- FSC available upon request (except 1/2″)
- Manufactured oversized at 49″ x 97″ and 49″ x 121″ (guaranteed good one long side and one short side)

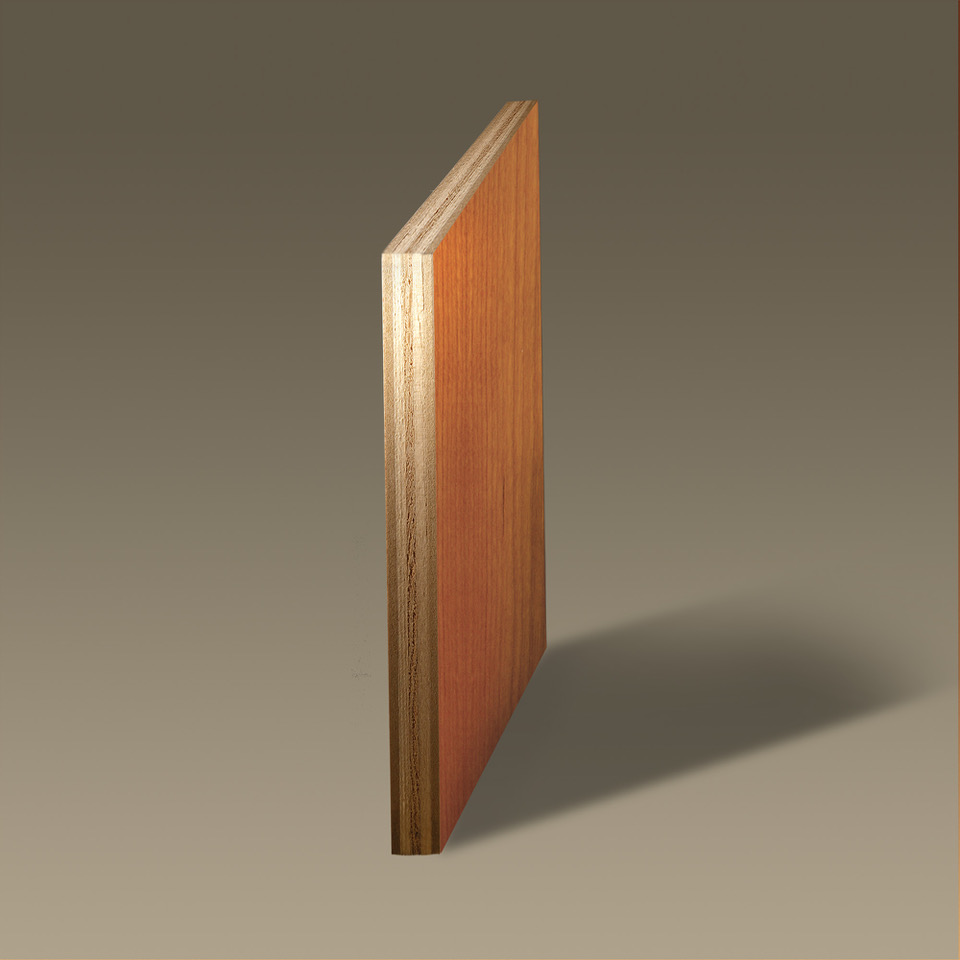

ArmorCore® MAX
- Ultimate platform for TFL use
- Strong composite to avoid degradation under heat
- Limited voids to enable defect-free lamination
- Tight thickness tolerance
- NAF (no added formaldehyde) on all thicknesses
- Calibrated platforms allow for thicknesses from 7/16″ to 1-1/4″
- Manufactured oversized at 49″ x 97″ and 49″ x 121″ (guaranteed good one long side and one short side)
- FSC not available
- Custom thicknesses available (tolerances +/- .015″) – contact your rep for details
ApplePly and Veneer Calibrated Platforms:
Contact your rep for details on these platform options.
Compare ArmorCore and ArmorCore MAX Platforms
Performance Specification | ArmorCore | ArmorCore MAX |
MOE | 630,200 | 630,200 |
MOR | 4,922 | 4,922 |
Screw holding face | 324 | 324 |
Screw holding edge | 271 | 271 |
Weight (3/4″ per msf) | 2,656 | 2,656 |
Thickness tolerance | +0, -0.047″ | +0, -0.030″ |
